Rooftop Deck - Sprinter MWB - Layout D

Rooftop Deck - Sprinter MWB - Layout D

£2,940.00
£2,940.00
Sale Sold out
  • Engineered to be perfect fit on the Sprinter. Transform your rig from "builder's van" to adventure machine.
  • 100% high grade alloy - will never corrode, thanks to the use of the strongest & most corrosion resistant grades of aluminium and stainless steel alloys.
  • Ultra-light & insanely strong, a product of computer simulations, brutal real-world trials and space age alloys.
  • Compatible with over 25 bolt-on accessories. It's easy to add lighting, solar, awnings, and more. No drilling or gluing.
  • Low noise, StrakeWave™ Technology keeps sound to a minimum.
  • Hand built in our UK workshop where cutting-edge equipment meets world-class craftsmanship. We love what we do & it shows in every detail!

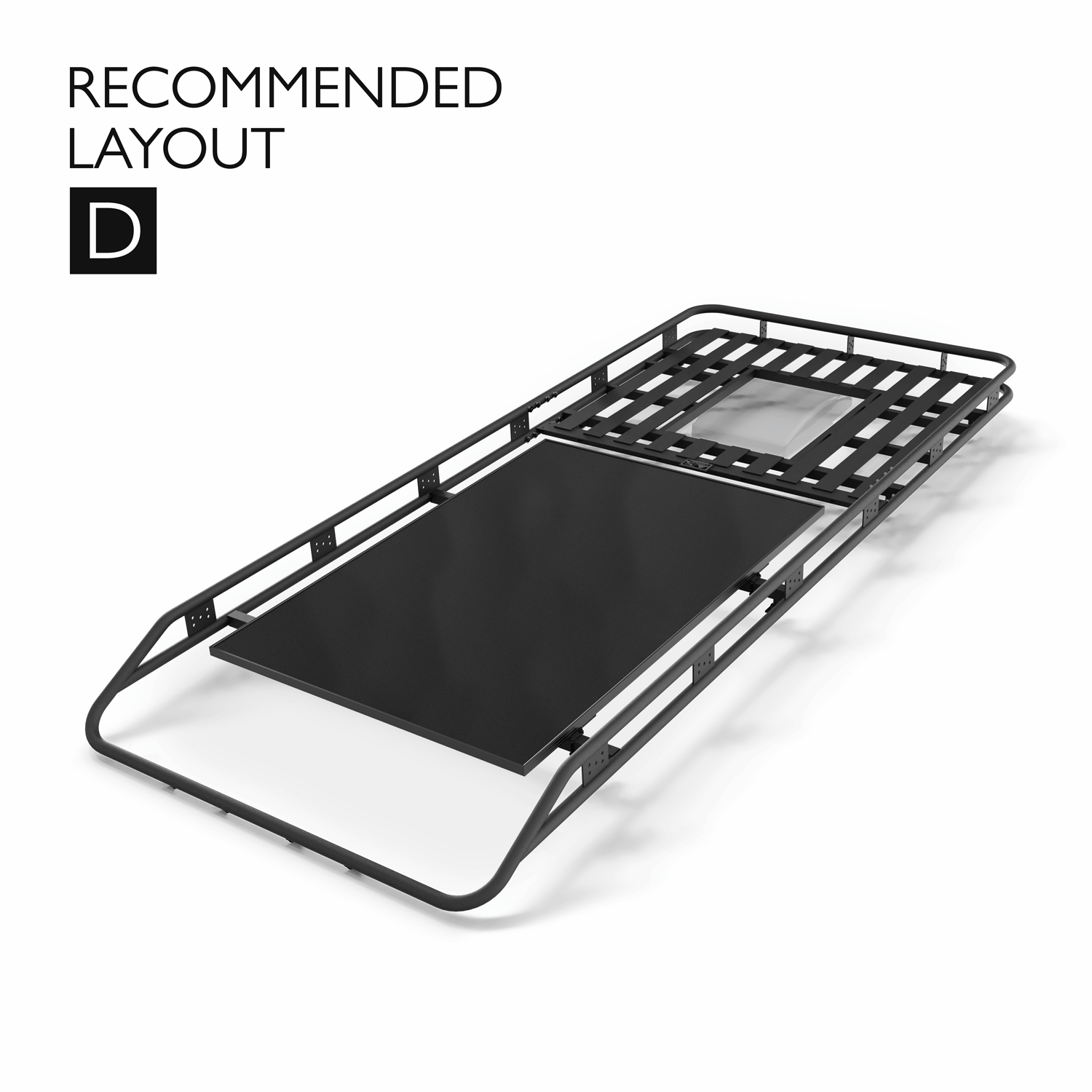

Why Layout D?

Layout D incorporates an opening for a Maxxfan Deluxe in the rear floor which gives enough room at the front to fit a massive 450W solar panel using our basic solar mount kit*.
Loads of space for solar, a rear floor and space for a Maxxfan, all whist keeping the weight in check. Sometimes you can have you cake and eat it too!

*Solar panel and mounts are optional extras, click “Configure & Add To Cart” to see details and pricing.

Tech Specs

Materials & Finish

  • Material: High grade Mg+Si Aluminium alloys TIG welded together. We only use the strongest and most corrosion resistant grades.
  • Hardware: Chemically blacked stainless steel and black anodised alloy, for a rust-free stealthy look.
  • Finish: Mantadeck DuraFuse™ is our unique ruggedised textured coating. Applied via a 5-stage finishing process, it’s much tougher & thicker than paint, & less slippery when wet.

Dimensions & Weights

  • Weight (excl solar): 47KG
  • Static payload (whilst parked): 253KG
  • Dynamic payload (whilst driving): 103kg
  • External dimensions: L 3.58m x W 1.47m
  • Slatted floor dimensions: L 1.24m x W 1.38m

Production details & more

  • Production time: As these are hand built to order lead time is usually 6-8 weeks but can be longer at peak times.
  • Recommended solar output: 450W (1 x 450W panel mounted with the Mantadeck Basic Solar Mount Kit).*
  • Designed to meet OEM roof load and mounting requirements.

    *Solar panel and mounts are optional extras, click “Configure & Add To Cart” to see details and pricing.

Compatibility Info

  • Compatible with the MWB high roof Mercedes Sprinter from 2006-2025 and the VW Crafter from 2006-2016.
  • Requires factory roof tracks. If your van does not have these fitted, they can be added to your order (just click “Configure & Add To Cart”)
  • Your Maxxfan Deluxe must be located in the right place so that it fits within the opening on the rack.
    Follow the instructions for “position 2” in the guide below to fit your Maxxfan in a compatible location, or to check the location of an existing Maxxfan.
    Maxxfan Deluxe Roof Vent Measuring Guide
