Rooftop Deck - Sprinter LWB - Layout G

Rooftop Deck - Sprinter LWB - Layout G

£4,050.00
£4,050.00
Sale Sold out
  • Engineered to be perfect fit on the Sprinter. Transform your rig from "builder's van" to adventure machine.
  • 100% high grade alloy - will never corrode, thanks to the use of the strongest & most corrosion resistant grades of aluminium and stainless steel alloys.
  • Ultra-light & insanely strong, a product of computer simulations, brutal real-world trials and space age alloys.
  • Compatible with over 25 bolt-on accessories. It's easy to add lighting, solar, awnings, and more. No drilling or gluing.
  • Low noise, StrakeWave™ Technology keeps sound to a minimum.
  • Hand built in our UK workshop where cutting-edge equipment meets world-class craftsmanship. We love what we do & it shows in every detail!

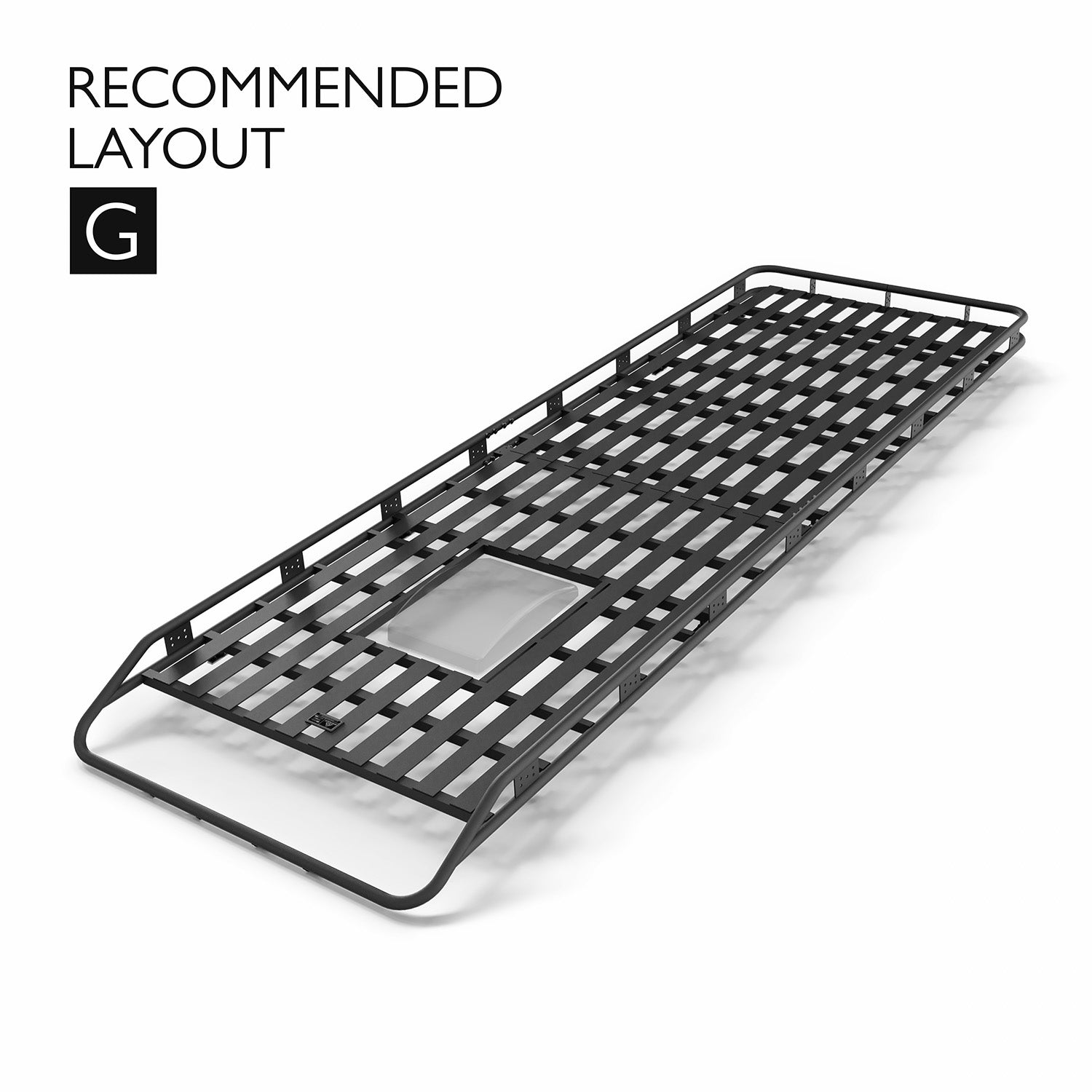

Why Layout G?

Layout G gives the absolute maximum amount of slatted floor space and a classic aesthetic. Despite the full coverage floor, the added weight remains comfortably within the load limit for the Sprinter/TGE/Crafter with plenty of headroom for accessories.
It includes an opening at the front for a Maxxfan Deluxe.
Whilst often used without solar panels, It pairs well with our flagship "Adaptive Solar Mount System" which gives you the option of a future proof and flexible solar setup*.
Give your van a true second story with enough space for a party on the roof!

*Solar panels and mounts are optional extras, click “Configure & Add To Cart” to see details and pricing.

Tech Specs

Materials & Finish

  • Material: High grade Mg+Si Aluminium alloys TIG welded together. We only use the strongest and most corrosion resistant grades.
  • Hardware: Chemically blacked stainless steel and black anodised alloy, for a rust-free stealthy look.
  • Finish: Mantadeck DuraFuse™ is our unique ruggedised textured coating. Applied via a 5-stage finishing process, it’s much tougher & thicker than paint, & less slippery when wet.

Dimensions & Weights

  • Weight (excl solar): 94KG
  • Static payload (whilst parked): 206KG
  • Dynamic payload (whilst driving): 56kg
  • External dimensions: L 4.62m x W 1.47m
  • Slatted floor dimensions: L 4.24m x W 1.38m

Production details & more

  • Production time: As these are hand built to order lead time is usually 6-8 weeks but can be longer at peak times.
  • Recommended solar output: 200W (2 x 100W panels used with the Mantadeck Adaptive Solar Mount System).*
  • Designed to meet OEM roof load and mounting requirements.

    *Solar panels and mounts are optional extras, click “Configure & Add To Cart” to see details and pricing.

Compatibility Info

  • Compatible with the LWB high roof Mercedes Sprinter from 2006-2025 and the VW Crafter from 2006-2016.
  • Requires factory roof tracks. If your van does not have these fitted, they can be added to your order (just click “Configure & Add To Cart”)
  • Your Maxxfan Deluxe must be located in the right place so that it fits within the opening on the rack.
    Follow the instructions for “position 2” in the guide below to fit your Maxxfan in a compatible location, or to check the location of an existing Maxxfan.
    Maxxfan Deluxe Roof Vent Measuring Guide
